เครื่องดูด-เป่าอากาศแบบริงโบลเวอร์ GAST SDR Series

เครื่องดูด-เป่าอากาศแบบริงโบลเวอร์ GAST SDR Series

เครื่องดูด-เป่าอากาศแบบริงโบลเวอร์ GAST SDR Series (RING BLOWER) สินค้าคุณภาพสูงนำเข้าจากอเมริกา โครงสร้างแข็งแรง ทนทาน เหมาะกับการใช้งานตามที่ต้องการ มีให้เลือก ทั้งรุ่น SDR4,SDR5,SDR6 Series ระบบการทำงานระบบไม่ใช้น้ำมัน เหมาะสำหรับนำมาใช้งานเติมอากาศในงานอุตสาหกรรม และงานเติมอากาศในฟาร์มเลี้ยงสัตว์น้ำ

GAST SDR Series is a high-quality ring blower (also known as a ring blower) imported from the United States. It features a sturdy and durable construction, making it suitable for various applications. The SDR Series offers different models, including SDR4, SDR5, and SDR6 Series. It operates without the use of oil, making it ideal for air replenishment in industrial settings and air supply in aquatic animal farming.

Rating Star
4.3/5

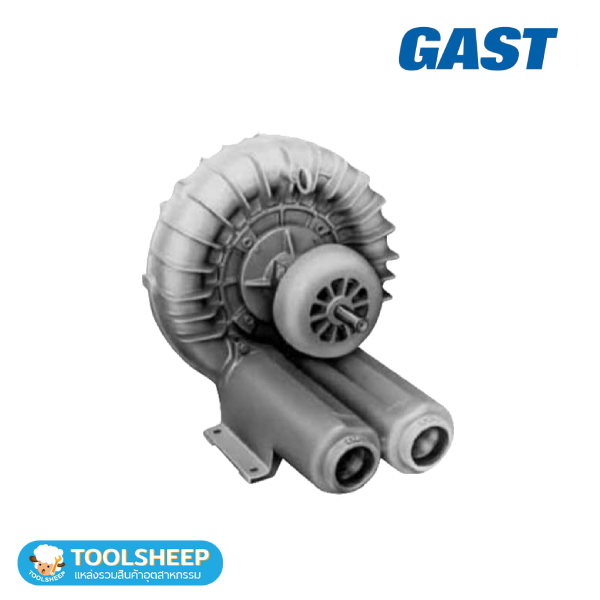

GAST รุ่น SDR Series

  • ริงโบลเวอร์ (regenerative blower) GAST SDR Series เป็นพัดลมโบลเวอร์แบบไม่ใช้น้ำมัน ซึ่งทำให้อากาศที่ระบายออกมาไม่เกิดการปนเปื้อน การทำงานของตัวเครื่องเสียงเงียบ เหมาะสำหรับ ใช้ในระบบบรรจุภัณฑ์ , ใช้เติมอากาศในระบบบำบัด, ใช้ในระบบลำเลียงอุตสาหกรรมต่างๆ เช่น ลำเลียงเม็ดพลาสติก ลำเลียงเมล็ดข้าว เป็นต้น



  • The GAST SDR Series is a regenerative blower that operates without the use of oil. It ensures that the expelled air remains clean and free from contamination. The blower operates quietly, making it suitable for applications in packaging systems, air replenishment in treatment systems, and various industrial conveying systems such as plastic pellet conveyors and grain conveyors.

FEATURE

  •  การทำงานแบบไร้น้ำมัน
  • โครงสร้างที่แข็งแรงและไม่ต้องการการบำรุงรักษามาก
  •  สามารถเปลี่ยนขนาดพูร์ลี่ขับเคลื่อนเพื่อลดความเร็วและเปลี่ยนประสิทธิภาพของบลาวเวอร์ได้
  •  ส่วนปิดอลูมิเนียม, พัดลม, และเครื่องทำลมอลูมิเนียมบนรุ่น SDR4, SDR5, SDR6
  • พัดลมอลูมิเนียม, เครื่องทำลมแบบหล่อเหล็ก, และเครื่องทำลมอลูมิเนียมบนรุ่น SDR6P
  • Oilless operation
  • Rugged construction, low maintenance
  • Drive pulley size can be changed to lower the speed and change blower performance
  • Aluminum cover, impeller, and housing on models SDR4, SDR5, SDR6
  • Aluminum impeller, cast iron, and housing on model SDR6P

RECOMMENDED ACCESSORIES

  • ปรอทแรงดัน AE133
  • ฟิลเตอร์น้ำเข้า AJ126D (สำหรับรุ่น SDR4) AJ126F (สำหรับรุ่น SDR5 – SDR6) AJ126G (สำหรับรุ่น SDR6P)
  •  เกจวัดแรงดันสูญเสีย AE134
  •  ฟิลเตอร์ในเส้นทางสูญเสีย AJ151E (สำหรับรุ่น SDR4)
    AJ151G (สำหรับรุ่น SDR5 – SDR6), AJ151H (สำหรับรุ่น SDR6P)
  • ลดเสียง AJ121D (สำหรับรุ่น SDR4, SDR5) AJ121F (สำหรับรุ่น SDR6, SDR6P)
  • วาล์วปล่อยแรงดันส่วนเกิน AG258
  • Pressure gauge AE133
  • Inlet filter AJ126D (SDR4) AJ126F (SDR5 – SDR6) AJ126G (SDR6P)
  • Vacuum gauge AE134
  • Vacuum in-line filter AJ151E (SDR4) AJ151G (SDR5 – SDR6), AJ151H (SDR6P)
  • Muffler AJ121D (SDR4, SDR5) AJ121F (SDR6, SDR6P)
  • Relief valve AG258

SPECIFICATIONS

DAIMENSIONS
