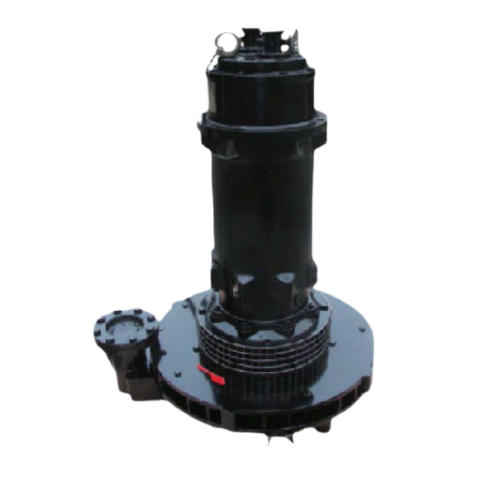

เครื่องเติมอากาศใต้น้ำ KIRA รุ่น SP Series

เครื่องเติมอากาศใต้น้ำ KIRA รุ่น SP Series

เครื่องเติมอากาศใต้น้ำ KIRA รุ่น SP Series มอเตอร์ขับเคลื่อนตรง เสียงเบา ประสิทธิภาพสูง Mechanical seal 2 ชั้น มอเตอร์ 4 Poles 50 Hz
มาพร้อมโซ่ยกสแตนเลสและตัวเก็บเสียงที่ได้มาตรฐาน สามารถใช้ได้ทั้งในการบำบัดน้ำเสียในโรงงานอุตสาหกรรม และการบำบัดน้ำเสียในโรงงานขนาดเล็ก สินค้านำเข้าจากประเทศญี่ปุ่น

เครื่องเป่าลมใต้น้ำ KIRA SP Series ติดตั้งมอเตอร์แบบขับตรง ซึ่งให้เสียงรบกวนต่ำและประสิทธิภาพสูง โดดเด่นด้วยซีลเชิงกล 2 ชั้น เพิ่มประสิทธิภาพการซีล มอเตอร์ทำงานที่ 4 ขั้วและ 50 Hz เครื่องเป่าลมมาพร้อมกับโซ่ยกสแตนเลสและเครื่องเก็บเสียงที่เป็นไปตามมาตรฐาน เหมาะสำหรับการบำบัดน้ำเสียอุตสาหกรรมในโรงงานและการบำบัดน้ำเสียขนาดเล็กในโรงงานต่างๆ สินค้านำเข้าจากประเทศญี่ปุ่น

Rating Star
4.3/5

CHARACTERISTICS (Refer to fig.A)

  • เครื่องเติมอากาศใต้น้ำ KIRA รุ่น SP Series ทำงานโดย “แรงเหวี่ยงหนีศูนย์” ที่เกิดจากการทำงานของใบพัด โดยใบพัดด้านหนึ่งมีหน้าที่ดูดน้ำ ส่วนอีกด้านมีหน้าที่ดูดอากาศ น้ำและอากาศจะถูกผสมกันในช่องที่ออกแบบให้มีขนาดที่เหมาะสม จึงทำให้อากาศที่ถูกจ่ายออกมามีแรงดัน ความเร็ว และอุณหภูมิที่เหมาะสม, อากาศไหลเวียนทั่วรัศมีการทำงาน, ฟองอากาศขนาดเล็ก และมีค่า Oxygen transfer rate สูง
  • The KIRA SP Series underwater air compressor operates using a “centrifugal force” generated by the working blades. One side of the blades functions to draw in water, while the other side draws in air. Water and air are then mixed within a specially designed chamber of appropriate size, resulting in the supplied air having the appropriate pressure, velocity, and temperature. The air circulation is evenly distributed throughout the radius of the compressor, creating small bubbles and achieving a high oxygen transfer rate.

FEATURE

  • มอเตอร์ขับเคลื่อนตรง ที่มีเสียงเบา และฮังคงประสิทธิภาพ
  • ห้องหรือพื้นที่ลำเลียงอากาศขนาดใหญ่ โดยอากาศและน้ำสามารถผสมกันได้ดี อีกทั้งระหว่างที่เครื่องทำงาน
    การผสมกันของน้ำ และอากาศก็ดำเนินไปอย่างต่อเนื่อง
  • ใช้ Mochanical Soal 2 ชั้น ช่วยยืดอายุการใช้งานของมอเตอร์
  •  ความปลอดภัย 2 ระดับ เพื่อกันมวลสาร เข้าไปภายในเครื่อง : ตะแกรงกรองสสารอย่างละเอียดพื้นที่ระหว่างใบพัดและสสารที่มีระยะห่างอย่างเหมาะสม
  • มอเตอร์ 4 Poles 50 Hz
  • โซ่สแตนเลส เพื่อความทนทานและยืดอายุการใช้งาน อีกทั้งอำนวยความสะดวกในการติดตั้ง
  • ตัวเก็บเสียง ที่มีมาตรฐานและประสิทธิภาพ
  • A direct-drive motor with low noise and high efficiency is utilized.
  • The system is designed for large air handling spaces or areas where air and water can be effectively mixed. The continuous mixing of water and air occurs while the machine is in operation.
  • It features a two-layer Mechanical Seal that helps prolong the motor’s lifespan.
  • It ensures two levels of safety to prevent the entry of foreign substances into the machine. This includes a finely meshed filter grid located between the blades and substances, maintaining an appropriate distance.
  • The motor operates at 4 poles and 50 Hz.
  • It employs a stainless steel chain for durability and longevity, while also facilitating convenient installation.
  • The sound collector meets standard requirements and ensures efficient performance.

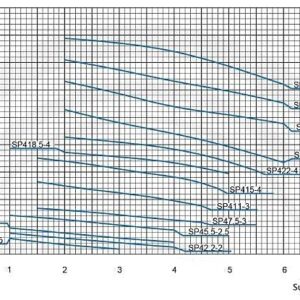

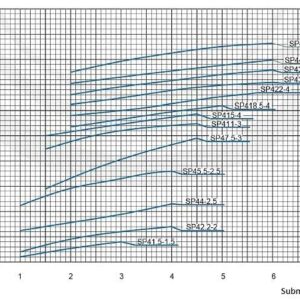

PERFORMANCE CURVE

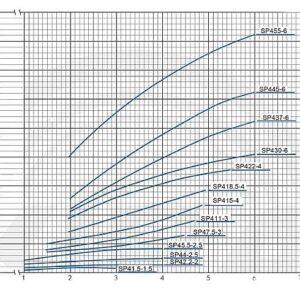

OXYGEN TRANSFER SPECIFIC CURVE

SPECIFICATION KIRA SP SERIES

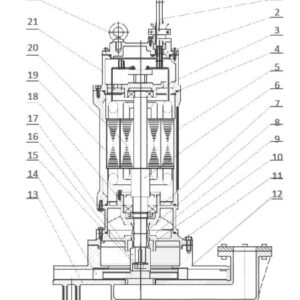

CONSTRUCTION

DIMENSIONS KIRA SP SERIES
