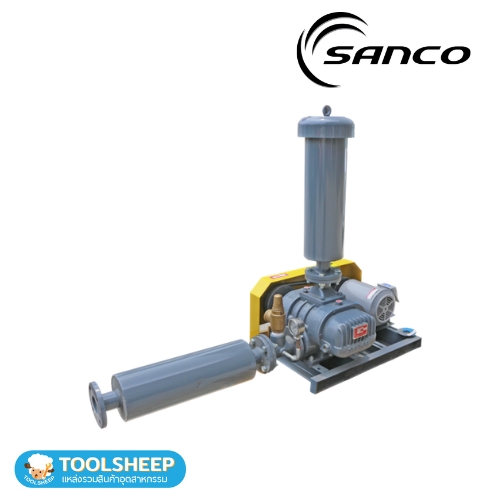

รูทโบลเวอร์ SANCO SCB Series
รูทโบลเวอร์ SANCO SCB Series เป็นเครื่องเติมอากาศแบบ Root Blower ชนิด Three Lobes ขับด้วยมอเตอร์ผ่าน Pulley และสายพาน โดยตัวโบลเวอร์ มอเตอร์ และอุปกรณ์ติดตั้งอยู่บนแท่นเดียวกัน พร้อม Silencer ทั้งทางดูดและทางจ่ายอากาศสำหรับช่วยลดเสียงขณะทำงาน
SANCO SCB Series ให้แรงลมคงที่และต่อเนื่อง พร้อมลมสะอาดปราศจากละอองน้ำมันปนเปื้อน ตัวเครื่องมีโครงสร้างเรียบง่าย แข็งแรงทนทาน ใช้น้ำมันสำหรับการหล่อลื่น และมีวาล์วป้องกันการไหลย้อนกลับของแรงดันเพื่อช่วยป้องกันความเสียหายต่อตัวเครื่อง
จุดเด่นของ SANCO SCB Series
- Three Lobes Root Blower — เป็นรูทโบลเวอร์แบบ Three Lobes สำหรับงานเติมอากาศ
- แรงลมคงที่และต่อเนื่อง — ให้ปริมาณแรงลมสม่ำเสมอตามข้อมูลที่ระบุ
- ลมสะอาดปราศจากละอองน้ำมัน — อากาศที่จ่ายออกไม่มีน้ำมันปนเปื้อน
- Silencer ทางดูดและทางจ่าย — ช่วยลดเสียงขณะเครื่องทำงาน
- ดูแลรักษาง่าย — โครงสร้างตัวเครื่องออกแบบให้ดูแลรักษาได้ง่าย
- วาล์วป้องกันการไหลย้อนกลับ — ช่วยป้องกันแรงดันไหลย้อนกลับและลดความเสี่ยงต่อความเสียหายของตัวเครื่อง
ข้อมูลทางเทคนิค
| รายการ | รายละเอียด |
|---|---|
| Series | SCB Series |
| Blower Type | Three Lobes Root Blower |
| Drive System | Motor, Pulley และสายพาน |
| Installation | Blower, Motor และอุปกรณ์ติดตั้งอยู่บนแท่นเดียวกัน |
| Silencer | ติดตั้งทั้งทางดูดและทางจ่ายอากาศ |
| Air Supply | ลมสะอาด ไม่มีละอองน้ำมันปนเปื้อน |
| Lubrication | ใช้น้ำมันในการหล่อลื่น |
| Protection | มีวาล์วป้องกันการไหลย้อนกลับของแรงดัน |
การใช้งาน
- งานเติมอากาศในน้ำเสียหรือระบบบำบัดน้ำเสียในโรงงานอุตสาหกรรม
- งาน Air-Lift ในโรงบำบัดน้ำเสียหรือระบบบำบัดน้ำเสียในโรงงานอุตสาหกรรม
- งานเติมออกซิเจนในพิพิธภัณฑ์สัตว์น้ำและฟาร์มเพาะเลี้ยงสัตว์น้ำ
- งานลำเลียงด้วยระบบลม

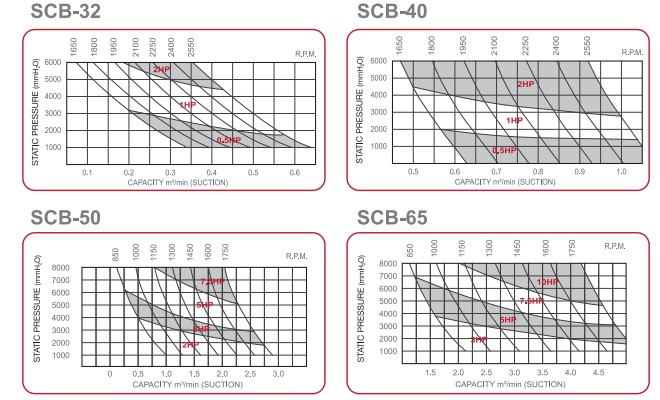

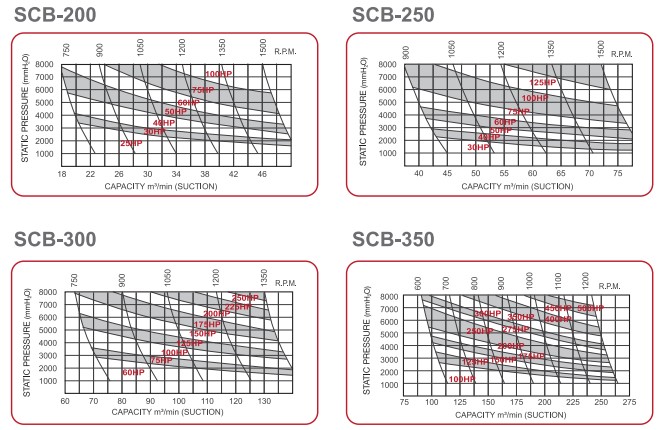

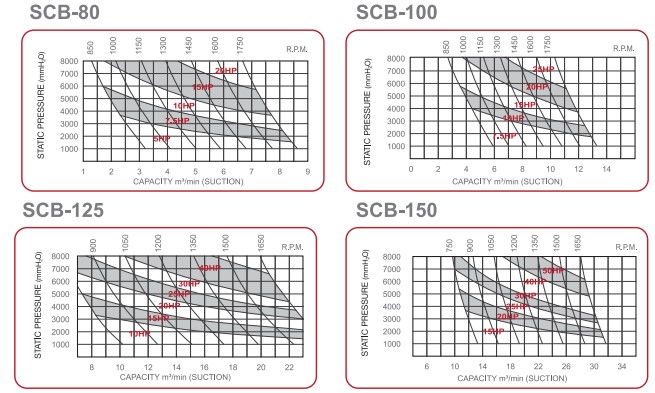

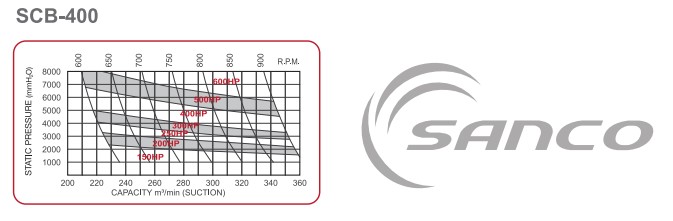

PERFORMANCE CURVE
SPECIFICATIONS
SANCO SCB-32
| Model | RPM | 1000 mmH2O Qs (m3/min) | 1000 mmH2O La (Kw) | 2000 mmH2O Qs (m3/min) | 2000 mmH2O La (Kw) | 3000 mmH2O Qs (m3/min) | 3000 mmH2O La (Kw) | 4000 mmH2O Qs (m3/min) | 4000 mmH2O La (Kw) | 5000 mmH2O Qs (m3/min) | 5000 mmH2O La (Kw) | 6000 mmH2O Qs (m3/min) | 6000 mmH2O La (Kw) | 7000 mmH2O Qs (m3/min) | 7000 mmH2O La (Kw) | 8000 mmH2O Qs (m3/min) | 8000 mmH2O La (Kw) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SANCO SCB-32 | 1650 | 0.34 | 0.19 | 0.27 | 0.27 | 0.21 | 0.36 | 0.16 | 0.45 | 0.11 | 0.54 | 0.07 | 0.62 | ||||
| SANCO SCB-32 | 1800 | 0.39 | 0.2 | 0.32 | 0.3 | 0.25 | 0.40 | 0.20 | 0.49 | 0.16 | 0.59 | 0.12 | 0.68 | ||||
| SANCO SCB-32 | 1950 | 0.44 | 0.22 | 0.36 | 0.32 | 0.30 | 0.43 | 0.25 | 0.53 | 0.21 | 0.63 | 0.17 | 0.74 | ||||
| SANCO SCB-32 | 2100 | 0.49 | 0.24 | 0.41 | 0.35 | 0.35 | 0.46 | 0.30 | 0.57 | 0.26 | 0.68 | 0.22 | 0.79 | ||||
| SANCO SCB-32 | 2250 | 0.54 | 0.26 | 0.46 | 0.37 | 0.40 | 0.49 | 0.35 | 0.61 | 0.31 | 0.73 | 0.26 | 0.85 | ||||
| SANCO SCB-32 | 2400 | 0.59 | 0.27 | 0.51 | 0.40 | 0.45 | 0.53 | 0.40 | 0.65 | 0.35 | 0.78 | 0.31 | 0.91 | ||||
| SANCO SCB-32 | 2550 | 0.64 | 0.29 | 0.56 | 0.42 | 0.50 | 0.56 | 0.45 | 0.69 | 0.40 | 0.83 | 0.36 | 0.92 |
SANCO SCB-40
| Model | RPM | 1000 mmH2O Qs (m3/min) | 1000 mmH2O La (Kw) | 2000 mmH2O Qs (m3/min) | 2000 mmH2O La (Kw) | 3000 mmH2O Qs (m3/min) | 3000 mmH2O La (Kw) | 4000 mmH2O Qs (m3/min) | 4000 mmH2O La (Kw) | 5000 mmH2O Qs (m3/min) | 5000 mmH2O La (Kw) | 6000 mmH2O Qs (m3/min) | 6000 mmH2O La (Kw) | 7000 mmH2O Qs (m3/min) | 7000 mmH2O La (Kw) | 8000 mmH2O Qs (m3/min) | 8000 mmH2O La (Kw) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SANCO SCB-40 | 1650 | 0.6 | 0.19 | 0.57 | 0.37 | 0.54 | 0.53 | 0.51 | 0.67 | 0.49 | 0.81 | 0.48 | 0.94 | ||||
| SANCO SCB-40 | 1800 | 0.68 | 0.21 | 0.64 | 0.4 | 0.61 | 0.57 | 0.59 | 0.74 | 0.57 | 0.88 | 0.55 | 1.02 | ||||
| SANCO SCB-40 | 1950 | 0.75 | 0.23 | 0.71 | 0.43 | 0.69 | 0.62 | 0.66 | 0.8 | 0.64 | 0.96 | 0.62 | 1.11 | ||||
| SANCO SCB-40 | 2100 | 0.83 | 0.24 | 0.79 | 0.47 | 0.76 | 0.67 | 0.74 | 0.86 | 0.71 | 1.03 | 0.7 | 1.19 | ||||
| SANCO SCB-40 | 2250 | 0.9 | 0.26 | 0.86 | 0.5 | 0.84 | 0.72 | 0.81 | 0.92 | 0.79 | 1.11 | 0.77 | 1.28 | ||||
| SANCO SCB-40 | 2400 | 0.97 | 0.28 | 0.94 | 0.53 | 0.91 | 0.77 | 0.88 | 0.98 | 0.86 | 1.18 | 0.85 | 1.36 | ||||
| SANCO SCB-40 | 2550 | 1.05 | 0.3 | 1.01 | 0.57 | 0.98 | 0.81 | 0.96 | 1.04 | 0.94 | 1.25 | 0.92 | 1.45 |
SANCO SCB-50
| Model | RPM | 1000 mmH2O Qs (m3/min) | 1000 mmH2O La (Kw) | 2000 mmH2O Qs (m3/min) | 2000 mmH2O La (Kw) | 3000 mmH2O Qs (m3/min) | 3000 mmH2O La (Kw) | 4000 mmH2O Qs (m3/min) | 4000 mmH2O La (Kw) | 5000 mmH2O Qs (m3/min) | 5000 mmH2O La (Kw) | 6000 mmH2O Qs (m3/min) | 6000 mmH2O La (Kw) | 7000 mmH2O Qs (m3/min) | 7000 mmH2O La (Kw) | 8000 mmH2O Qs (m3/min) | 8000 mmH2O La (Kw) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SANCO SCB-50 | 850 | 0.99 | 0.41 | 0.79 | 0.8 | 0.64 | 1.16 | 0.5 | 1.51 | 0.38 | 1.84 | 0.29 | 2.15 | 0.21 | 2.45 | 0.15 | 2.74 |
| SANCO SCB-50 | 1000 | 1.31 | 0.48 | 1.11 | 0.94 | 0.96 | 1.37 | 0.82 | 1.77 | 0.7 | 2.16 | 0.61 | 2.53 | 0.53 | 2.88 | 0.47 | 3.22 |
| SANCO SCB-50 | 1150 | 1.63 | 0.56 | 1.44 | 1.08 | 1.28 | 1.57 | 1.15 | 2.04 | 1.02 | 2.49 | 0.93 | 2.91 | 0.86 | 3.32 | 0.79 | 3.71 |
| SANCO SCB-50 | 1300 | 0.195 | 0.63 | 1.76 | 1.22 | 1.61 | 1.78 | 1.47 | 2.31 | 1.34 | 2.81 | 1.25 | 3.29 | 1.18 | 2.75 | 1.12 | 4.19 |
| SANCO SCB-50 | 1450 | 2.27 | 0.7 | 2.08 | 1.36 | 1.93 | 1.98 | 1.79 | 2.57 | 1.67 | 3.31 | 1.58 | 3.67 | 1.5 | 4.18 | 1.44 | 4.67 |
| SANCO SCB-50 | 1600 | 2.6 | 0.77 | 2.4 | 1.5 | 2.25 | 2.19 | 2.11 | 2.84 | 1.99 | 3.46 | 1.9 | 4.05 | 1.82 | 4.61 | 1.76 | 5.16 |
| SANCO SCB-50 | 1750 | 2.92 | 0.85 | 2.72 | 164 | 2.57 | 2.39 | 2.43 | 3.11 | 2.31 | 3.78 | 2.22 | 4.43 | 2.14 | 5.05 | 2.08 | 5.64 |
SANCO SCB-65
| Model | RPM | 1000 mmH2O Qs (m3/min) | 1000 mmH2O La (Kw) | 2000 mmH2O Qs (m3/min) | 2000 mmH2O La (Kw) | 3000 mmH2O Qs (m3/min) | 3000 mmH2O La (Kw) | 4000 mmH2O Qs (m3/min) | 4000 mmH2O La (Kw) | 5000 mmH2O Qs (m3/min) | 5000 mmH2O La (Kw) | 6000 mmH2O Qs (m3/min) | 6000 mmH2O La (Kw) | 7000 mmH2O Qs (m3/min) | 7000 mmH2O La (Kw) | 8000 mmH2O Qs (m3/min) | 8000 mmH2O La (Kw) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SANCO SCB-65 | 850 | 2.07 | 0.62 | 1.89 | 1.21 | 1.71 | 1.76 | 1.55 | 2.29 | 1.41 | 2.78 | 1.29 | 3.26 | 1.19 | 3.71 | 1.09 | 4.15 |
| SANCO SCB-65 | 1000 | 2.58 | 0.73 | 2.41 | 1.42 | 2.22 | 2.07 | 2.07 | 2.69 | 1.93 | 3.28 | 1.81 | 3.83 | 1.71 | 4.37 | 1.6 | 4.88 |
| SANCO SCB-65 | 1150 | 3.1 | 0.84 | 2.93 | 1.64 | 2.74 | 2.39 | 2.58 | 3.09 | 2.45 | 3.77 | 2.33 | 4.41 | 2.22 | 5.03 | 2.12 | 5.62 |
| SANCO SCB-65 | 1300 | 3.62 | 0.95 | 3.45 | 1.85 | 3.26 | 2.69 | 3.1 | 3.5 | 2.96 | 4.26 | 2.84 | 4.99 | 2.74 | 5.68 | 2.64 | 6.35 |
| SANCO SCB-65 | 1450 | 4.13 | 1.06 | 3.96 | 2.06 | 3.77 | 3.01 | 3.62 | 3.9 | 3.48 | 4.75 | 3.36 | 5.56 | 3.26 | 6.34 | 3.15 | 7.08 |
| SANCO SCB-65 | 1600 | 4.65 | 1.17 | 4.48 | 2.28 | 4.29 | 3.32 | 4.13 | 4.3 | 4 | 5.24 | 3.88 | 6.18 | 3.77 | 6.99 | 3.67 | 7.81 |
| SANCO SCB-65 | 1750 | 5.17 | 1.28 | 5 | 2.49 | 4.81 | 3.63 | 4.65 | 4.71 | 4.51 | 5.73 | 4.39 | 6.71 | 4.29 | 7.65 | 4.19 | 8.55 |
SANCO SCB-80
| Model | RPM | 1000 mmH2O Qs (m3/min) | 1000 mmH2O La (Kw) | 2000 mmH2O Qs (m3/min) | 2000 mmH2O La (Kw) | 3000 mmH2O Qs (m3/min) | 3000 mmH2O La (Kw) | 4000 mmH2O Qs (m3/min) | 4000 mmH2O La (Kw) | 5000 mmH2O Qs (m3/min) | 5000 mmH2O La (Kw) | 6000 mmH2O Qs (m3/min) | 6000 mmH2O La (Kw) | 7000 mmH2O Qs (m3/min) | 7000 mmH2O La (Kw) | 8000 mmH2O Qs (m3/min) | 8000 mmH2O La (Kw) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SANCO SCB-80 | 850 | 3.24 | 1.12 | 2.87 | 2.14 | 2.54 | 3.08 | 2.23 | 3.94 | 1.95 | 4.73 | 1.7 | 5.47 | 1.48 | 6.15 | 1.28 | 6.79 |
| SANCO SCB-80 | 1000 | 4.14 | 1.32 | 3.77 | 2.52 | 3.44 | 3.62 | 3.13 | 4.63 | 2.85 | 5.57 | 2.6 | 6.44 | 2.38 | 7.24 | 2.18 | 7.99 |
| SANCO SCB-80 | 1150 | 5.04 | 1.51 | 4.67 | 2.9 | 4.34 | 4.16 | 4.03 | 5.33 | 3.75 | 6.4 | 3.5 | 7.4 | 3.28 | 8.33 | 3.08 | 9.19 |
| SANCO SCB-80 | 1300 | 5.94 | 1.71 | 5.57 | 3.27 | 5.24 | 4.71 | 4.93 | 6.02 | 4.65 | 7.24 | 4.4 | 8.37 | 4.18 | 9.41 | 3.98 | 10.39 |
| SANCO SCB-80 | 1450 | 6.84 | 1.91 | 6.47 | 3.65 | 6.14 | 5.25 | 5.83 | 6.72 | 5.55 | 8.08 | 5.3 | 9.33 | 5.08 | 10.5 | 4.88 | 11.58 |
| SANCO SCB-80 | 1600 | 7.74 | 2.11 | 7.37 | 4.03 | 7.04 | 5.79 | 6.73 | 7.41 | 6.45 | 8.91 | 6.2 | 10.33 | 5.98 | 11.58 | 5.78 | 12.78 |
| SANCO SCB-80 | 1750 | 8.64 | 2.3 | 8.27 | 4.41 | 7.94 | 6.33 | 7.63 | 8.11 | 7.35 | 9.75 | 7.1 | 11.26 | 6.88 | 12.67 | 6.68 | 13.98 |
SANCO SCB-100
| Model | RPM | 1000 mmH2O Qs (m3/min) | 1000 mmH2O La (Kw) | 2000 mmH2O Qs (m3/min) | 2000 mmH2O La (Kw) | 3000 mmH2O Qs (m3/min) | 3000 mmH2O La (Kw) | 4000 mmH2O Qs (m3/min) | 4000 mmH2O La (Kw) | 5000 mmH2O Qs (m3/min) | 5000 mmH2O La (Kw) | 6000 mmH2O Qs (m3/min) | 6000 mmH2O La (Kw) | 7000 mmH2O Qs (m3/min) | 7000 mmH2O La (Kw) | 8000 mmH2O Qs (m3/min) | 8000 mmH2O La (Kw) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SANCO SCB-100 | 850 | 5.8 | 1.57 | 5.19 | 3 | 4.65 | 4.31 | 4.16 | 5.5 | 3.74 | 6.63 | 3.36 | 7.66 | 3.03 | 8.62 | 2.74 | 9.51 |
| SANCO SCB-100 | 1000 | 7.06 | 1.84 | 6.45 | 3.53 | 5.91 | 5.07 | 5.42 | 6.49 | 5 | 7.8 | 4.62 | 9.01 | 4.29 | 10.14 | 4 | 11.19 |
| SANCO SCB-100 | 1150 | 8.32 | 2.12 | 7.71 | 4.05 | 7.17 | 5.83 | 6.68 | 7.46 | 6.26 | 8.97 | 5.88 | 10.36 | 5.55 | 11.66 | 5.26 | 12.86 |
| SANCO SCB-100 | 1300 | 9.58 | 2.4 | 8.97 | 4.58 | 8.43 | 6.59 | 7.94 | 8.43 | 7.52 | 10.14 | 7.14 | 11.71 | 6.81 | 13.18 | 6.52 | 14.54 |
| SANCO SCB-100 | 1450 | 10.84 | 2.67 | 10.23 | 5.11 | 9.69 | 7.35 | 9.2 | 9.41 | 8.78 | 11.31 | 8.4 | 13.06 | 8.7 | 14.7 | 7.78 | 16.22 |
| SANCO SCB-100 | 1600 | 12.1 | 2.95 | 11.49 | 5.64 | 10.95 | 8.11 | 10.46 | 10.38 | 10.04 | 12.47 | 9.66 | 14.42 | 9.33 | 16.22 | 9.04 | 17.9 |
| SANCO SCB-100 | 1750 | 13.36 | 3.23 | 12.75 | 6.17 | 12.21 | 8.87 | 11.72 | 11.35 | 11.3 | 13.64 | 10.92 | 15.77 | 10.59 | 17.74 | 10.3 | 19.57 |
SANCO SCB-125
| Model | RPM | 1000 mmH2O Qs (m3/min) | 1000 mmH2O La (Kw) | 2000 mmH2O Qs (m3/min) | 2000 mmH2O La (Kw) | 3000 mmH2O Qs (m3/min) | 3000 mmH2O La (Kw) | 4000 mmH2O Qs (m3/min) | 4000 mmH2O La (Kw) | 5000 mmH2O Qs (m3/min) | 5000 mmH2O La (Kw) | 6000 mmH2O Qs (m3/min) | 6000 mmH2O La (Kw) | 7000 mmH2O Qs (m3/min) | 7000 mmH2O La (Kw) | 8000 mmH2O Qs (m3/min) | 8000 mmH2O La (Kw) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SANCO SCB-125 | 750 | 10.29 | 2.59 | 9.42 | 4.96 | 8.62 | 7.13 | 7.88 | 9.12 | 7.25 | 10.97 | 6.66 | 12.67 | 6.11 | 14.26 | 5.65 | 15.74 |
| SANCO SCB-125 | 900 | 12.69 | 3.11 | 11.81 | 5.95 | 11.01 | 8.55 | 10.28 | 10.95 | 9.64 | 13.16 | 9.05 | 15.21 | 8.51 | 17.11 | 8.04 | 18.89 |
| SANCO SCB-125 | 1050 | 15.08 | 3.63 | 14.2 | 6.94 | 13.41 | 9.98 | 12.67 | 12.77 | 12.03 | 15.35 | 11.44 | 17.74 | 10.9 | 19.97 | 10.44 | 22.04 |
| SANCO SCB-125 | 1200 | 17.48 | 4.15 | 16.6 | 7.93 | 15.8 | 11.4 | 15.07 | 14.59 | 14.43 | 17.55 | 13.84 | 20.28 | 13.29 | 22.82 | 12.83 | 25.18 |
| SANCO SCB-125 | 1350 | 19.87 | 4.66 | 18.99 | 8.92 | 18.19 | 12.83 | 17.46 | 16.42 | 16.82 | 19.74 | 16.23 | 22.81 | 15.69 | 25.67 | 15.23 | 28.33 |
| SANCO SCB-125 | 1500 | 22.26 | 5.18 | 21.39 | 9.91 | 20.59 | 14.25 | 19.85 | 18.24 | 19.22 | 21.93 | 18.63 | 25.35 | 18.08 | 28.52 | 17.62 | 31.48 |
| SANCO SCB-125 | 1650 | 24.66 | 5.7 | 23.78 | 10.9 | 22.98 | 15.68 | 22.25 | 20.07 | 21.61 | 24.13 | 21.02 | 27.88 | 20.48 | 31.38 | 20.01 | 34.63 |
SANCO SCB-150
| Model | RPM | 1000 mmH2O Qs (m3/min) | 1000 mmH2O La (Kw) | 2000 mmH2O Qs (m3/min) | 2000 mmH2O La (Kw) | 3000 mmH2O Qs (m3/min) | 3000 mmH2O La (Kw) | 4000 mmH2O Qs (m3/min) | 4000 mmH2O La (Kw) | 5000 mmH2O Qs (m3/min) | 5000 mmH2O La (Kw) | 6000 mmH2O Qs (m3/min) | 6000 mmH2O La (Kw) | 7000 mmH2O Qs (m3/min) | 7000 mmH2O La (Kw) | 8000 mmH2O Qs (m3/min) | 8000 mmH2O La (Kw) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SANCO SCB-150 | 750 | 13.32 | 3.34 | 12.62 | 6.39 | 11.98 | 9.19 | 11.4 | 11.76 | 10.87 | 14.14 | 10.93 | 16.34 | 10 | 18.39 | 9.61 | 20.3 |
| SANCO SCB-150 | 900 | 16.4 | 4.01 | 15.7 | 7.67 | 15.06 | 11.03 | 14.59 | 14.11 | 13.95 | 16.97 | 13.48 | 19.61 | 13.09 | 22.07 | 12.7 | 24.36 |
| SANCO SCB-150 | 1050 | 19.49 | 4.68 | 18.79 | 8.95 | 18.15 | 12.86 | 17.58 | 16.47 | 17.04 | 19.8 | 16.57 | 22.88 | 16.18 | 25.75 | 15.78 | 28.41 |
| SANCO SCB-150 | 1200 | 22.58 | 5.35 | 21.88 | 10.23 | 21.24 | 14.7 | 20.66 | 18.82 | 20.13 | 22.62 | 19.65 | 26.15 | 19.26 | 29.42 | 18.87 | 32.47 |
| SANCO SCB-150 | 1350 | 25.66 | 6.02 | 24.96 | 11.5 | 24.33 | 16.54 | 23.75 | 21.17 | 23.21 | 25.45 | 22.74 | 29.42 | 22.35 | 33.1 | 21.96 | 36.53 |
| SANCO SCB-150 | 1500 | 28.75 | 6.68 | 28.05 | 12.78 | 27.41 | 18.38 | 26.84 | 23.52 | 26.3 | 28.28 | 25.83 | 32.69 | 25.44 | 36.78 | 25.05 | 40.59 |
| SANCO SCB-150 | 1650 | 31.84 | 7.35 | 31.14 | 14.06 | 30.5 | 20.21 | 29.92 | 25.88 | 29.39 | 31.11 | 28.91 | 35.96 | 28.52 | 40.46 | 28.13 | 44.65 |
SANCO SCB-200
| Model | RPM | 1000 mmH2O Qs (m3/min) | 1000 mmH2O La (Kw) | 2000 mmH2O Qs (m3/min) | 2000 mmH2O La (Kw) | 3000 mmH2O Qs (m3/min) | 3000 mmH2O La (Kw) | 4000 mmH2O Qs (m3/min) | 4000 mmH2O La (Kw) | 5000 mmH2O Qs (m3/min) | 5000 mmH2O La (Kw) | 6000 mmH2O Qs (m3/min) | 6000 mmH2O La (Kw) | 7000 mmH2O Qs (m3/min) | 7000 mmH2O La (Kw) | 8000 mmH2O Qs (m3/min) | 8000 mmH2O La (Kw) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SANCO SCB-200 | 600 | 17.01 | 4.84 | 15.95 | 9.27 | 15.04 | 13.32 | 14.21 | 17.06 | 13.53 | 20.51 | 12.93 | 23.71 | 12.4 | 26.68 | 11.98 | 29.45 |
| SANCO SCB-200 | 750 | 22.68 | 6.05 | 21.62 | 11.58 | 20.71 | 16.65 | 19.88 | 21.32 | 19.22 | 25.64 | 18.6 | 29.64 | 18.07 | 33.36 | 17.65 | 36.82 |
| SANCO SCB-200 | 900 | 28.35 | 7.17 | 27.29 | 13.9 | 26.38 | 19.98 | 25.55 | 25.59 | 24.87 | 30.77 | 24.27 | 35.57 | 23.74 | 40.03 | 23.32 | 44.18 |
| SANCO SCB-200 | 1050 | 34.02 | 8.48 | 32.96 | 16.22 | 32.05 | 23.32 | 31.22 | 29.85 | 30.54 | 35.896 | 29.94 | 41.49 | 29.41 | 46.7 | 28.99 | 51.55 |
| SANCO SCB-200 | 1200 | 39.69 | 9.69 | 38.63 | 18.53 | 37.72 | 26.65 | 36.89 | 34.12 | 36.21 | 41.02 | 35.61 | 47.42 | 35.08 | 53.37 | 34.66 | 58.91 |
| SANCO SCB-200 | 1350 | 45.36 | 10.9 | 44.3 | 20.85 | 43.39 | 29.98 | 42.56 | 38.38 | 41.88 | 46.15 | 41.28 | 53.35 | 40.75 | 60.04 | 40.33 | 66.27 |
| SANCO SCB-200 | 1500 | 51.03 | 12.11 | 49.97 | 23.17 | 49.06 | 33.31 | 48.23 | 42.56 | 47.55 | 51.28 | 46.95 | 59.28 | 46.42 | 66.71 | 46 | 73.64 |
SANCO SCB-250
| Model | RPM | 1000 mmH2O Qs (m3/min) | 1000 mmH2O La (Kw) | 2000 mmH2O Qs (m3/min) | 2000 mmH2O La (Kw) | 3000 mmH2O Qs (m3/min) | 3000 mmH2O La (Kw) | 4000 mmH2O Qs (m3/min) | 4000 mmH2O La (Kw) | 5000 mmH2O Qs (m3/min) | 5000 mmH2O La (Kw) | 6000 mmH2O Qs (m3/min) | 6000 mmH2O La (Kw) | 7000 mmH2O Qs (m3/min) | 7000 mmH2O La (Kw) | 8000 mmH2O Qs (m3/min) | 8000 mmH2O La (Kw) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SANCO SCB-250 | 600 | 27.72 | 7.4 | 26.22 | 14.16 | 24.89 | 20.35 | 23.68 | 26.06 | 22.58 | 31.34 | 21.6 | 36.23 | 20.73 | 40.77 | 19.98 | 45 |
| SANCO SCB-250 | 750 | 36.38 | 9.25 | 34.88 | 17.7 | 33.55 | 25.44 | 32.34 | 32.58 | 31.24 | 3.17 | 30.26 | 45.28 | 29.39 | 50.96 | 28.64 | 56.25 |
| SANCO SCB-250 | 900 | 45.05 | 11.1 | 43.54 | 21.24 | 42.22 | 30.53 | 41 | 39.09 | 39.91 | 47.01 | 38.92 | 54.38 | 38.06 | 61.15 | 37.31 | 67.5 |
| SANCO SCB-250 | 1050 | 53.71 | 12.95 | 52.21 | 24.77 | 50.88 | 35.62 | 49.67 | 45.61 | 48.57 | 54.84 | 47.59 | 63.39 | 46.72 | 71.34 | 45.97 | 78.75 |
| SANCO SCB-250 | 1200 | 62.37 | 14.8 | 60.87 | 28.31 | 59.54 | 40.71 | 58.33 | 52.12 | 57.23 | 62.67 | 56.25 | 72.45 | 55.38 | 81.54 | 54.63 | 90 |
| SANCO SCB-250 | 1350 | 71.03 | 16.65 | 69.53 | 31.85 | 68.2 | 45.8 | 66.99 | 58.64 | 65.89 | 70.51 | 64.91 | 81.51 | 64.04 | 91.73 | 63.29 | 101.3 |
| SANCO SCB-250 | 1500 | 79.7 | 18.5 | 78.19 | 35.39 | 76.87 | 50.89 | 75.65 | 65.16 | 74.56 | 78.34 | 73.57 | 90.56 | 72.71 | 101.9 | 71.96 | 112.5 |
SANCO SCB-300
| Model | RPM | 1000 mmH2O Qs (m3/min) | 1000 mmH2O La (Kw) | 2000 mmH2O Qs (m3/min) | 2000 mmH2O La (Kw) | 3000 mmH2O Qs (m3/min) | 3000 mmH2O La (Kw) | 4000 mmH2O Qs (m3/min) | 4000 mmH2O La (Kw) | 5000 mmH2O Qs (m3/min) | 5000 mmH2O La (Kw) | 6000 mmH2O Qs (m3/min) | 6000 mmH2O La (Kw) | 7000 mmH2O Qs (m3/min) | 7000 mmH2O La (Kw) | 8000 mmH2O Qs (m3/min) | 8000 mmH2O La (Kw) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SANCO SCB-300 | 600 | 58.94 | 14.44 | 55.49 | 25.88 | 58.83 | 37.23 | 52.04 | 47.7 | 50.48 | 58.83 | 49.26 | 68.88 | 47.59 | 79.49 | 46.7 | 88.83 |
| SANCO SCB-300 | 750 | 75.62 | 18.06 | 72.17 | 32.35 | 70.39 | 46.54 | 68.72 | 59.63 | 67.16 | 73.53 | 65.94 | 86.1 | 64.27 | 99.36 | 63.38 | 111 |
| SANCO SCB-300 | 900 | 92.3 | 21.67 | 88.85 | 38.82 | 87.07 | 55.85 | 85.4 | 71.55 | 83.84 | 88.24 | 82.62 | 103.3 | 80.95 | 119.2 | 80.06 | 133.3 |
| SANCO SCB-300 | 1050 | 109 | 25.28 | 105.5 | 45.29 | 103.8 | 65.16 | 102.1 | 83.48 | 100.5 | 103 | 99.3 | 120.5 | 97.63 | 139.1 | 96.74 | 155.5 |
| SANCO SCB-300 | 1200 | 125.7 | 28.89 | 122.2 | 51.76 | 120.4 | 74.46 | 118.8 | 95.41 | 117.2 | 117.7 | 116 | 137.8 | 114.3 | 159 | 113.4 | 177.7 |
| SANCO SCB-300 | 1350 | 142.3 | 32.5 | 138.9 | 58.23 | 137.1 | 83.77 | 135.4 | 107.3 | 133.9 | 132.4 | 132.7 | 155 | 131 | 178.9 | 130.1 | 199.9 |
| SANCO SCB-300 | 1500 | 159 | 36.11 | 155.6 | 64.7 | 153.8 | 93.08 | 152.1 | 119.3 | 150.6 | 147.1 | 149.3 | 172.2 | 146.8 | 198.7 | 146.8 | 222.1 |
SANCO SCB-350
| Model | RPM | 1000 mmH2O Qs (m3/min) | 1000 mmH2O La (Kw) | 2000 mmH2O Qs (m3/min) | 2000 mmH2O La (Kw) | 3000 mmH2O Qs (m3/min) | 3000 mmH2O La (Kw) | 4000 mmH2O Qs (m3/min) | 4000 mmH2O La (Kw) | 5000 mmH2O Qs (m3/min) | 5000 mmH2O La (Kw) | 6000 mmH2O Qs (m3/min) | 6000 mmH2O La (Kw) | 7000 mmH2O Qs (m3/min) | 7000 mmH2O La (Kw) | 8000 mmH2O Qs (m3/min) | 8000 mmH2O La (Kw) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SANCO SCB-350 | 600 | 122.3 | 28.57 | 117.7 | 51.29 | 114.1 | 73.82 | 110.7 | 96.95 | 107.8 | 118.1 | 105.3 | 141.8 | 102.8 | 161.6 | 100.3 | 187.7 |
| SANCO SCB-350 | 700 | 144.9 | 33.34 | 140.3 | 59.84 | 136.7 | 86.13 | 133.3 | 113.1 | 130.4 | 137.8 | 127.9 | 165.4 | 125.4 | 188.5 | 122.9 | 219 |
| SANCO SCB-350 | 800 | 167.5 | 38.1 | 162.9 | 68.39 | 159.3 | 98.43 | 155.9 | 129.3 | 153 | 157.4 | 150.5 | 189 | 148 | 215.4 | 145.5 | 250.2 |
| SANCO SCB-350 | 900 | 190.1 | 42.86 | 185.5 | 76.94 | 181.9 | 110.7 | 178.5 | 145.4 | 175.6 | 177.1 | 173.1 | 212.6 | 170.6 | 242.3 | 168.1 | 281.5 |
| SANCO SCB-350 | 1000 | 212.7 | 47.62 | 108.1 | 85.49 | 204.5 | 123 | 201.1 | 161.6 | 198.2 | 196.8 | 195.7 | 236.3 | 193.2 | 269.3 | 190.7 | 312.8 |
| SANCO SCB-350 | 1100 | 235.2 | 52.38 | 230.7 | 94.04 | 227.1 | 135.3 | 223.7 | 177.7 | 220.8 | 216.5 | 218.3 | 259.9 | 215.8 | 296.2 | 213.3 | 344.1 |
| SANCO SCB-350 | 1200 | 257.8 | 57.15 | 253.3 | 102.6 | 249.7 | 147.6 | 246.3 | 193.9 | 243.4 | 236.2 | 240.9 | 283.5 | 238.4 | 323.1 | 235.9 | 375.4 |
SANCO SCB-400
| Model | RPM | 1000 mmH2O Qs (m3/min) | 1000 mmH2O La (Kw) | 2000 mmH2O Qs (m3/min) | 2000 mmH2O La (Kw) | 3000 mmH2O Qs (m3/min) | 3000 mmH2O La (Kw) | 4000 mmH2O Qs (m3/min) | 4000 mmH2O La (Kw) | 5000 mmH2O Qs (m3/min) | 5000 mmH2O La (Kw) | 6000 mmH2O Qs (m3/min) | 6000 mmH2O La (Kw) | 7000 mmH2O Qs (m3/min) | 7000 mmH2O La (Kw) | 8000 mmH2O Qs (m3/min) | 8000 mmH2O La (Kw) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SANCO SCB-400 | 600 | 236.3 | 53.28 | 230.3 | 95.65 | 225.5 | 137.67 | 221.3 | 180.8 | 217.6 | 221.1 | 214.1 | 264.4 | 211.3 | 301.4 | 208.8 | 350.1 |
| SANCO SCB-400 | 650 | 257.4 | 57.73 | 251.4 | 103.62 | 246.5 | 149.14 | 242.3 | 195.9 | 238.6 | 239.5 | 235.2 | 286.5 | 232.3 | 326.5 | 229.8 | 379.3 |
| SANCO SCB-400 | 700 | 278.4 | 62.17 | 272.4 | 111.59 | 267.5 | 160.62 | 263.3 | 210.9 | 259.6 | 257.9 | 256.2 | 308.5 | 253.4 | 351.6 | 250.8 | 408.5 |
| SANCO SCB-400 | 750 | 299.4 | 66.61 | 293.4 | 119.56 | 288.6 | 172.1 | 284.4 | 226 | 280.7 | 276.4 | 277.2 | 330.5 | 274.4 | 376.7 | 271.9 | 437.7 |
| SANCO SCB-400 | 800 | 320.4 | 71.05 | 314.4 | 127.53 | 309.6 | 183.6 | 305.4 | 241.1 | 301.7 | 294.8 | 298.2 | 352.6 | 295.4 | 401.8 | 292.9 | 466.8 |
| SANCO SCB-400 | 850 | 341.5 | 75.49 | 335.5 | 135.51 | 330.6 | 195 | 326.4 | 256.1 | 322.7 | 313.2 | 319.3 | 374.6 | 316.4 | 42.9 | 313.9 | 496 |
| SANCO SCB-400 | 900 | 362.5 | 79.93 | 356.5 | 143.5 | 351.6 | 206.5 | 347.4 | 271.2 | 343.7 | 331.6 | 340.3 | 396.7 | 337.5 | 452 | 335 | 525.2 |
